Datalogic Bar Code Scanner/Reader Manufacturer Part number: MG112041-001-412

Products

Uniquepos Mobile Shoppping

Accept Credit Cards Online

Home > Scanners / Input Devices >

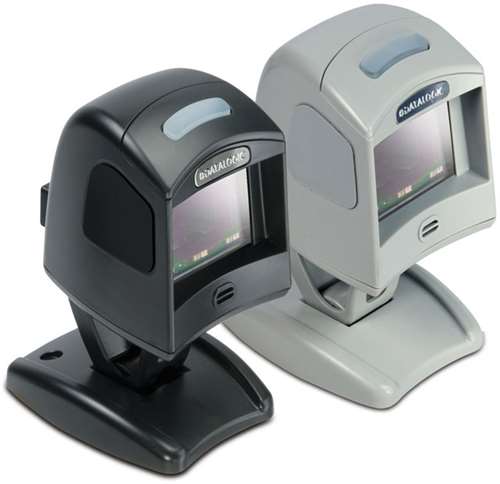

Magellan 1100I (With Trigger, Green Spot, Usb Cable And Stand) - Color: Black

List Price: $445.00

Our Price: $255.85

You save $189.15!

Condition : New
Manufacturer : Datalogic
Warranty : Manufacturer Warranty
Commodity Description : Bar Code Scanner/Reader
UPC Code : 5052461756281

Stock Status : In Stock

Availability : Usually Ships in 1 to 2 Business Days
Manufacturer Part Number : MG112041-001-412

Qty:

Description

Technical Specs

Magellan 1100i, USB Kit, Button with Targeting Green Spot, 1D only, Riser Stand, USB 2 m Cable, Black (Kit includes Scanner, Stand and cable.)

Decoding Capability

1D / Linear Codes
- Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
2D Codes
- Aztec Code
- Data Matrix
- MaxiCode
- QR Code
Stacked Codes
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MicroPDF417
- PDF417

Electrical

Current
- Operating (Typical)
  - < 400 mA
- Standby/Idle (Typical)
  - < 300 mA
Input Voltage
- 4.5 - 14.0 VDC

Environmental

Ambient Light
- Indoor
  0 to 6,000 lux
- Outdoor
  0 to 86,100 lux
Drop Resistance
- Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface
ESD Protection (Air Discharge)
- 25 kV
Humidity (Non-Condensing)
- 5 - 95%
Particulate and Water Sealing
- IP52
Temperature
- Operating
  - 0 to 40 °C / 32 to 104 °F
- Storage/Transport
  - -40 to 70 °C / -40 to 158 °F

Interfaces

IBM 46xx
Keyboard Wedge
OEM (IBM) USB
RS-232
USB

Optional Features

EAS Features
- Checkpoint Systems
  - Integrated EAS hardware will work with Counterpoint IV, V, VI and VII models
- Sensormatic
  - Good Read Acknowledgement
Value Added Features
- Diagnostic Reporting
- Host Download
- Productivity Index Reporting™ (PIR)

Physical Characteristics

Colors Available
- Black
- Grey
- Other colors and custom logo options are available for minimum quantity purchase.
Dimensions
- Riser Stand
  8.3 x 7.1 x 8.6 cm / 3.2 x 2.8 x 3.4 in
- Scanner
  8.4 x 7.1 x 9.4 cm / 3.3 x 2.8 x 3.7 in
Weight
- Riser Stand
  187.1 g / 6.6 oz
- Scanner
  198.5 g / 7.0 oz

Reading Performance

Image Capture
- Optional
  752 x 480 pixels
- Graphic Formats
  - JPEG
Print Contrast Ratio (Minimum)
- 25%
Read Rate (Maximum)
- 1,768 digital scan lines/sec.
Reading Angle
- Pitch
  - +/- 65°
- Roll (Tilt)
  - 0 - 360°
- Skew (Yaw)
  - +/- 75°
Reading Indicators
- Beeper (Adjustable Tone and Volume)
- Datalogic 'Green Spot' Good Read Feedback
- Good Read LED
Resolution (Maximum)
- 0.130 mm / 5 mils
Scan Lines
- Digital
  136

Reading Ranges - Typical Depth of Field

Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.
1D / Linear Codes

5 mils
- 1.3 to 4.6 cm / 0.5 to 1.8 in

7.5 mils
- 0.63 to 5.71 cm / 0.25 to 2.25 in

10 mils
- 0 to 12.7 cm / 0 to 5.0 in

13 mils UPC
- 0 to 15.2 cm / 0 to 6.0 in

20 mils
- 0 to 17.1 cm / 0 to 6.7 in

Optional Codes

6.6 mils PDF
- 3.8 to 7.6 cm / 1.5 to 3.0 in

10 mils Data Matrix
- 0 to 4.5 cm / 0 to 1.8 in

10 mils PDF
- 3.1 to 15.2 cm / 1.2 to 6.0 in

15 mils PDF
- 2.5 to 15.2 cm / 1.0 to 6.0 in

24 mils Data Matrix
- 0 to 12.7 cm / 0 to 5.0 in

Safety & Regulatory

Agency Approvals
- The product meets necessary safety and regulatory approvals for its intended use.
- The Quick Reference Guide for this product can be referred to for a complete list of certifications.
Environmental Compliance
- Complies to EU RoHS
LED Classification
- IEC 60825 Class 1 LED

Utilities

OPOS / JavaPOS
- JavaPOS Utilities are available for download at no charge
- OPOS Utilities are available for download at no charge
Remote Host Download
- Lowers service costs and improves operations

Warranty
